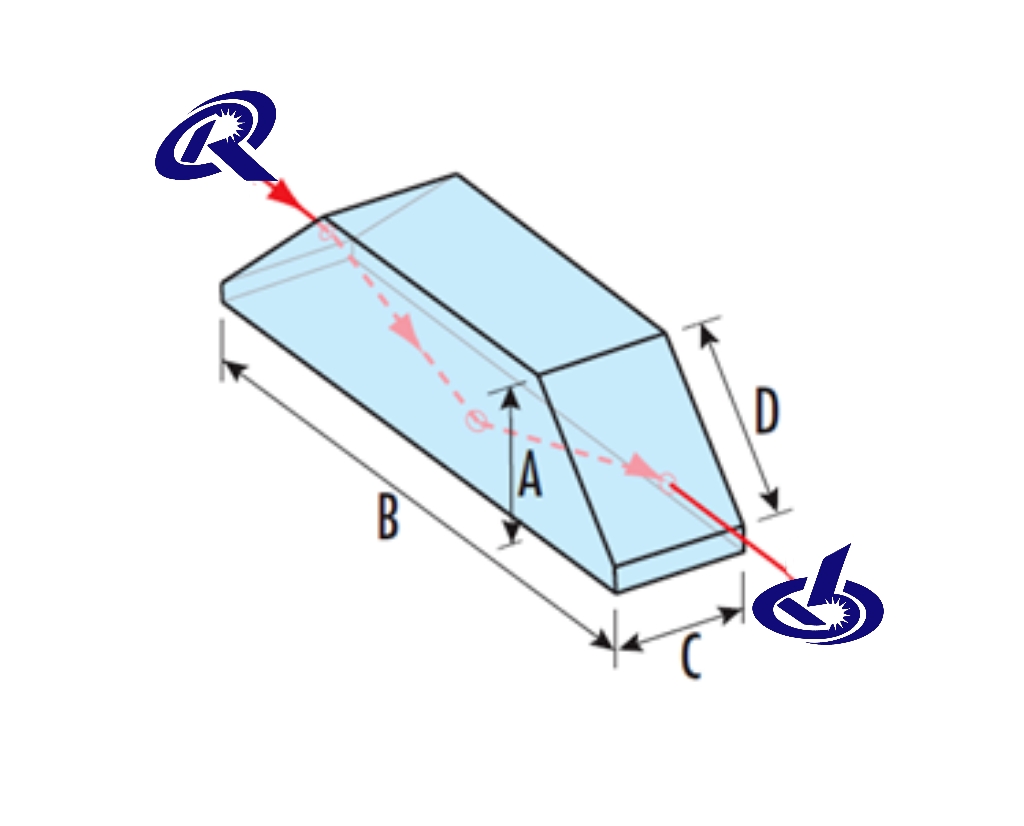

Dove Prism is a form of prism invented by H. W. Dove. It resembles half of a common right-angle prism in which a ray entering parallel to hypotenuse face is reflected internally at that face and emerges parallel to its incident direction. One of the incident rays emerges along a continuation of its incident direction, and if the prism is rotated about that ray through some angle, the image rotates through twice that angle. A Dove Prism must be used in parallel light.

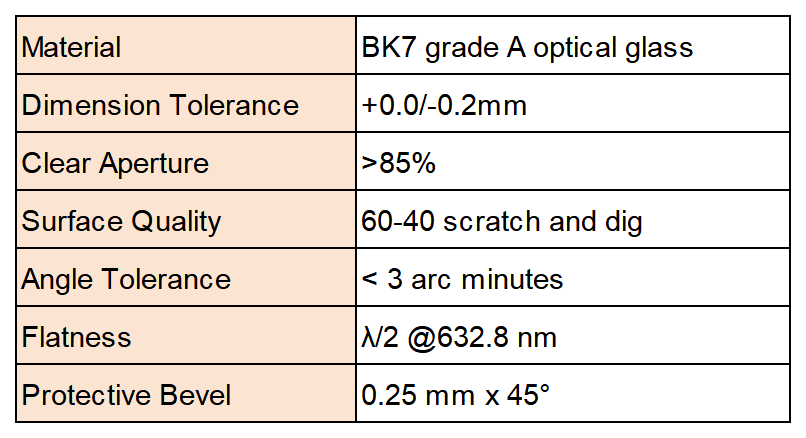

Specification:
Material | BK7 grade A optical glass |
Dimension Tolerance | +0.0/-0.2mm |
Clear Aperture | >85% |
Surface Quality | 60-40 scratch and dig |
Angle Tolerance | < 3 arc minutes |
Flatness: | λ/2@632.8nm |
Protective Bevel | 0.25 mm x 45° |

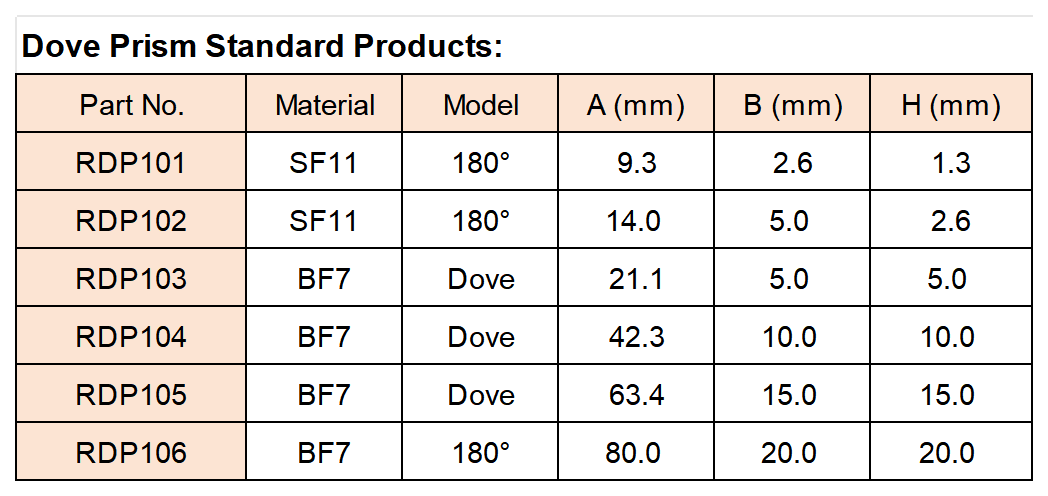

Dove Prism Standard Products:
Part No. | Material | Model | A (mm) | B (mm) | h (mm) |
RDP101 | SF11 | 180° | 9.3 | 2.6 | 1.3 |
RDP102 | SF11 | 180° | 14.0 | 5.0 | 2.6 |
RDP103 | BK7 | Dove | 21.1 | 5.0 | 5.0 |
RDP104 | BK7 | Dove | 42.3 | 10.0 | 10.0 |
RDP105 | BK7 | Dove | 63.4 | 15.0 | 15.0 |
RDP106 | BK7 | 180° | 80.0 | 20.0 | 20.0 |
Note: Other sizes, material and coatings are available upon request.
