Roof Prism with high dimension control and apply to any Anti-reflecting coating.
It may be used to revert and invert the image as well as bend the line of sight through a 90 degree angle.

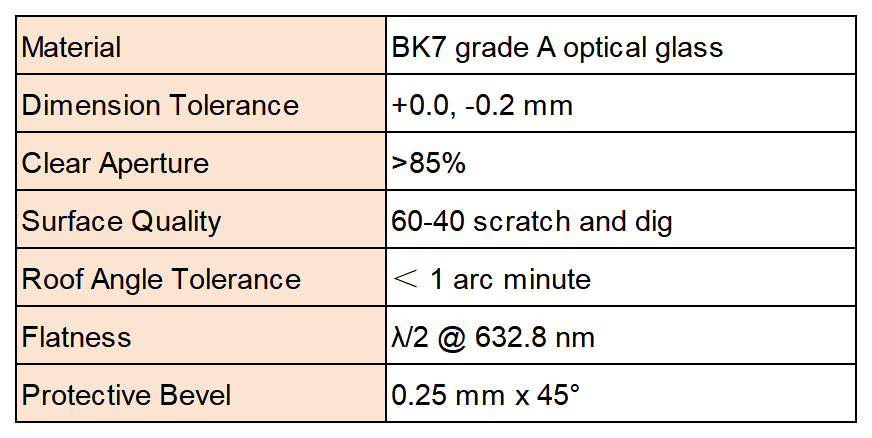

Specification:
Material | BK7 grade A optical glass |
Dimension Tolerance | +0.0, -0.2 mm |
Clear Aperture | >85% |
Surface Quality | 60-40 scratch and dig |
Roof Angle Tolerance | < 1 arc minute |
Flatness | λ/2 @ 632.8 nm |
Protective Bevel | 0.25 mm x 45° |
BK7 Roof Prism Standard Products:
Part No. | A (mm) | B (mm) | h (mm) |
RRP101 | 15.0 | 15.0 | 12.0 |
RRP102 | 23.0 | 23.0 | 18.0 |
RRP103 | 31.5 | 31.5 | 23.0 |
Note: Other size, material and coatings are available upon request.
