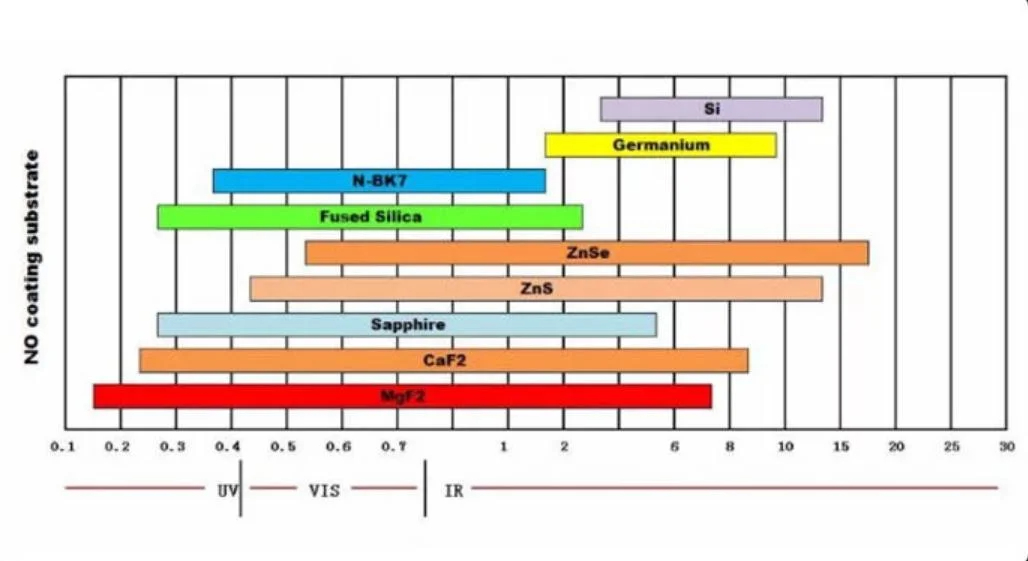

Magnesium Fluoride (MgF2) has excellent transmission in the UV wavelength. Rays optics can supply single crystal UVU grade MgF2 material. This material can be used for excimer & Nd:YAG laser optics.
Application:
● IR Sensor
● Thermal Image
● Medical Measurement

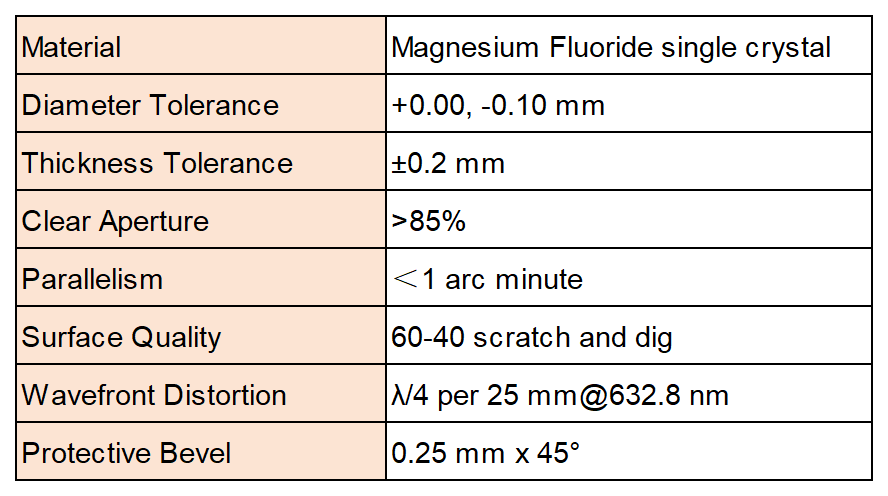

Specification:
Material | Magnesium Fluoride single crystal |
Diameter Tolerance | +0.0,-0.1mm |
Thickness Tolerance | ±0.2mm |
Clear Aperture | > 85% |
Parallelism | < 1 arc minute |
Surface Quality | 60-40 scratch and dig |
Wavefront Distortion | λ/4 per 25mm@632.8nm |
Protective Bevel | 0.25mm x 45° |

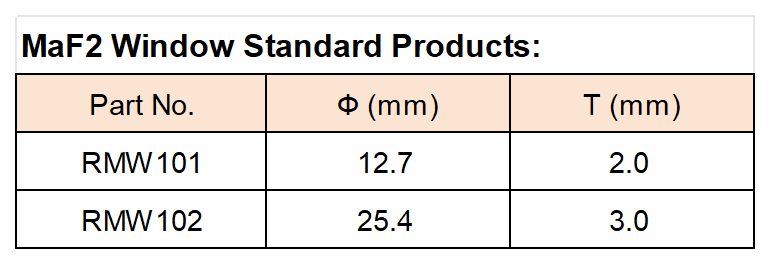

MaF2 Window Standard Products:
Part No. | Ф (mm) | T (mm) |
FMW101 | 12.7 | 2.0 |
FmW102 | 25.4 | 3.0 |
Note: Other size and coating are available upon request.
