These lenses have positive focus length. Most suitable where one conjugate is more than five times, the other. e.g. in sensor application or for use with near collimated light. Also where both conjugates are on the same side of the lens, e.g. as an add-on lens to increase the numerical aperture.
Application:
●Optical Display System
●Projection Optics System
●Imaging Optics System
●Laser Measurements System

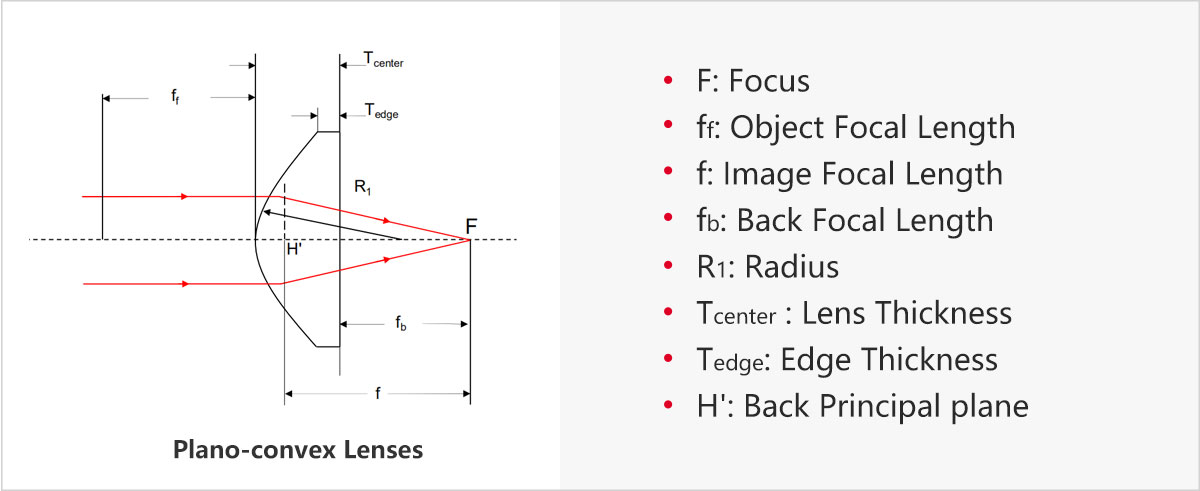

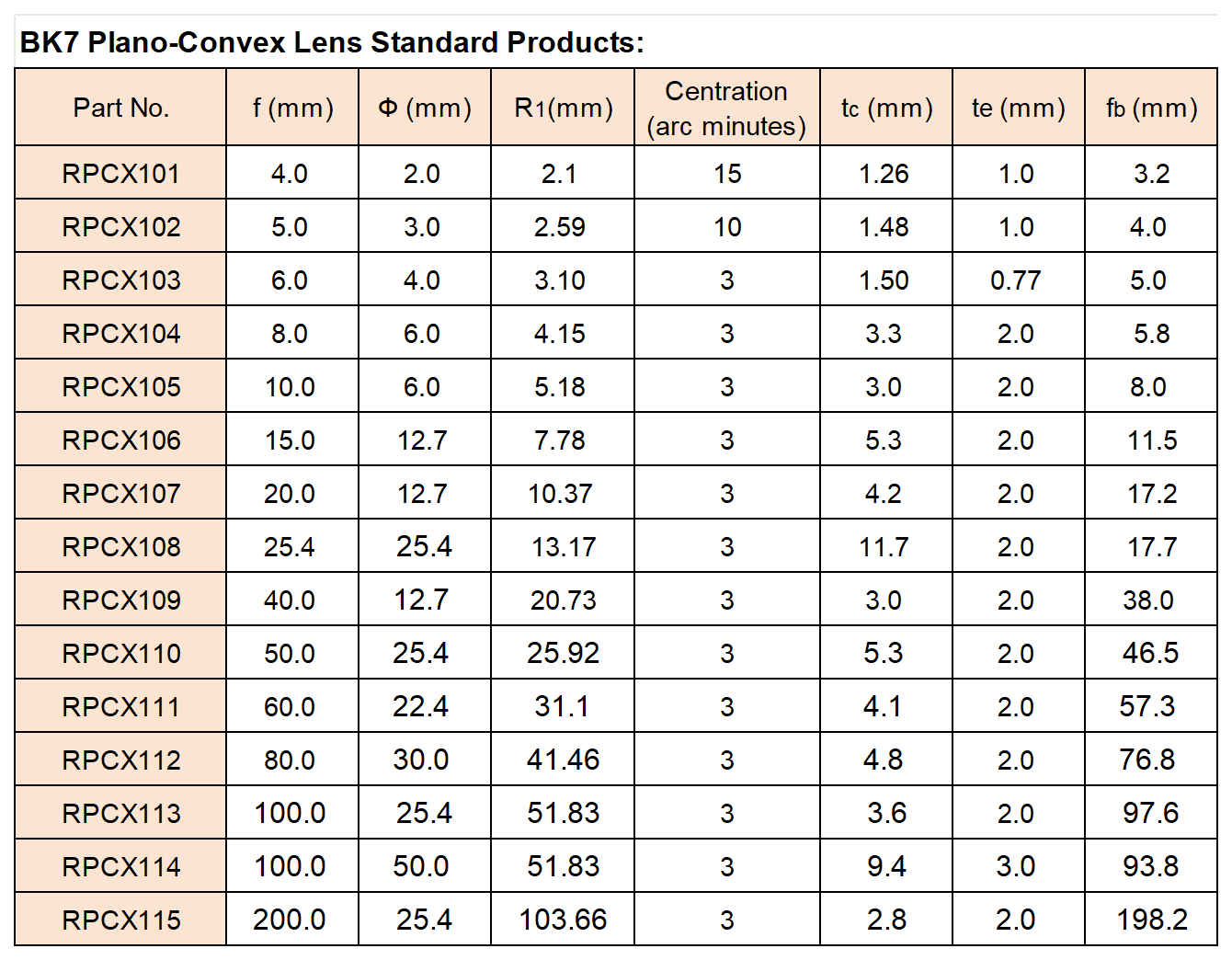

BK7 Plano-Convex Lens Standard Products:
Part No. | f (mm) | Ф(mm) | R1 (mm) | Centration (arc minutes) | t c (mm) | t e(mm) | f b(mm) |
RSP101 | 4.0 | 2.0 | 2.073 | 15 | 1.26 | 1.0 | 3.2 |
RSP102 | 5.0 | 3.0 | 2.592 | 10 | 1.48 | 1.0 | 4.0 |
RSP103 | 6.0 | 4.0 | 3.101 | 3 | 1.50 | 0.77 | 5.0 |
RSP104 | 8.0 | 6.0 | 4.15 | 3 | 3.3 | 2.0 | 5.8 |
RSP105 | 10.0 | 6.0 | 5.18 | 3 | 3.0 | 2.0 | 8.0 |
RSP106 | 15.0 | 12.7 | 7.78 | 3 | 5.3 | 2.0 | 11.5 |
RSP107 | 20.0 | 12.7 | 10.37 | 3 | 4.2 | 2.0 | 17.2 |
RSP108 | 25.4 | 25.4 | 13.17 | 3 | 11.7 | 2.0 | 17.7 |
RSP109 | 40.0 | 12.7 | 20.73 | 3 | 3.0 | 2.0 | 38.0 |
RSP110 | 50.0 | 25.4 | 25.92 | 3 | 5.3 | 2.0 | 46.5 |
RSP111 | 60.0 | 22.4 | 31.1 | 3 | 4.1 | 2.0 | 57.3 |
RSP112 | 80.0 | 30.0 | 41.46 | 3 | 4.8 | 2.0 | 76.8 |
RSP113 | 100.0 | 25.4 | 51.83 | 3 | 3.6 | 2.0 | 97.6 |
RSP114 | 100.0 | 50.0 | 51.83 | 3 | 9.4 | 3.0 | 93.8 |
RSP115 | 200 | 25.4 | 103.66 | 3 | 2.8 | 2.0 | 198.2 |
Note: Other material, size and coating are available upon request.

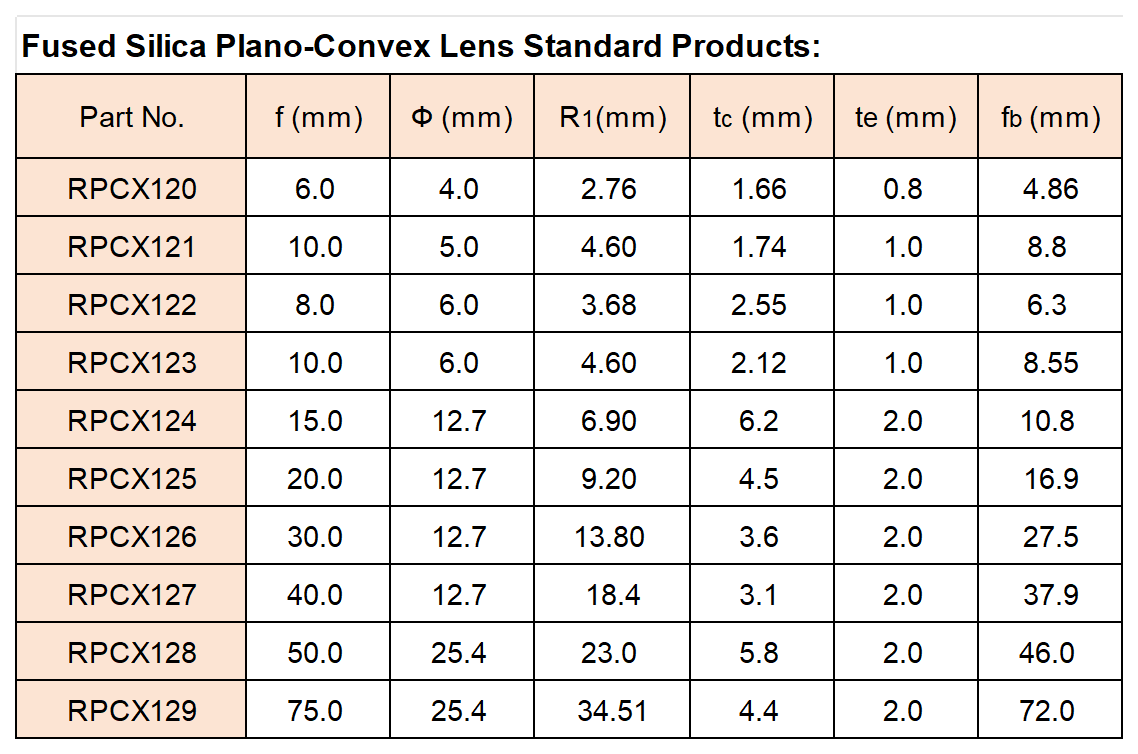

Fused Silica Plano-Convex Lens Standard Products:
Part No. | f (mm) | Ф(mm) | R1 (mm) | t c (mm) | t e(mm) | f b(mm) |
RSP120 | 6.0 | 4.0 | 2.76 | 1.66 | 0.8 | 4.86 |
RSP121 | 10.0 | 5.0 | 4.60 | 1.74 | 1.0 | 8.81 |
RSP122 | 8.0 | 6.0 | 3.68 | 2.55 | 1.0 | 6.25 |
RSP123 | 10.0 | 6.0 | 4.6 | 2.12 | 1.0 | 8.55 |
RSP124 | 15.0 | 12.7 | 6.9 | 6.2 | 2.0 | 10.8 |
RSP125 | 20.0 | 12.7 | 9.2 | 4.5 | 2.0 | 16.9 |
RSP126 | 30.0 | 12.7 | 13.8 | 3.6 | 2.0 | 27.5 |
RSP127 | 40.0 | 12.7 | 18.4 | 3.1 | 2.0 | 37.9 |
RSP128 | 50.0 | 25.4 | 23.0 | 5.8 | 2.0 | 46.0 |
RSP129 | 75.0 | 25.4 | 34.51 | 4.4 | 2.0 | 72.0 |
Note: Other material, size and coating are available upon request.
