Description

Notch Filters are Optical Filters that selectively reject a portion of the spectrum, while transmitting all other wavelengths.They are used in applications that require deep blocking of a narrow wavelength range, while offering broad transmission of the other wavelengths.

Applications

● Raman spectroscopy

● laser-based fluorescence instrumentation

● confocal or multi-photon microscopy

Benefits

● High transmittance

●deep reflection

●narrow rejection bands

Products

●Material :H-K9L

●Dimension: 3mm to Maximum Size:∅50mm / 55mm×55mm

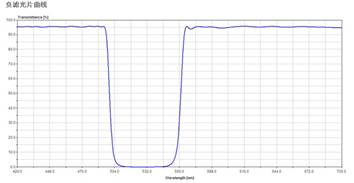

●Transmittance: Tavg>90%@488-1500nm

●  Blocking at CWL:OD4

●  Surface quality:60-40

● Custom wavelength: 488，532，632.8，1064nm

●Temperature：-40℃ ~ +60℃
