Description

SUN OPTICS standard biomedical filters have been widely applied for biochemical analyzers, They are all with excellent out-of-band blocking which can provide high signal-to-noise. And the biomedical filters are with extraordinary hardness, abrasion resistance, which means nearly unlimited lifetime.

Applications

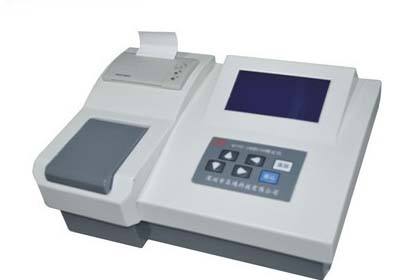

● Biochemical Analyzer,
● Microplate reader
● Biological and chemical analysis instrument

Benefits

● No wavelength drift
● High transmission
●Deep blocking

Products

● Diameter:8mm 10mm 12.7mm 15mm
● Thickness：<6mm
● The typical wavelength: 340 380 405 450 492 510 546 578 589 590 600 620 630 nm
● Center wavelength tolerance: + / - 2 nm
● Half the peak bandwidth: 10 + / - 2 nm
● Peak transmittance: 20% 85% (related to wavelength, and instrument types)
● Surface quality: 80-50
● Background: >OD4
